Description

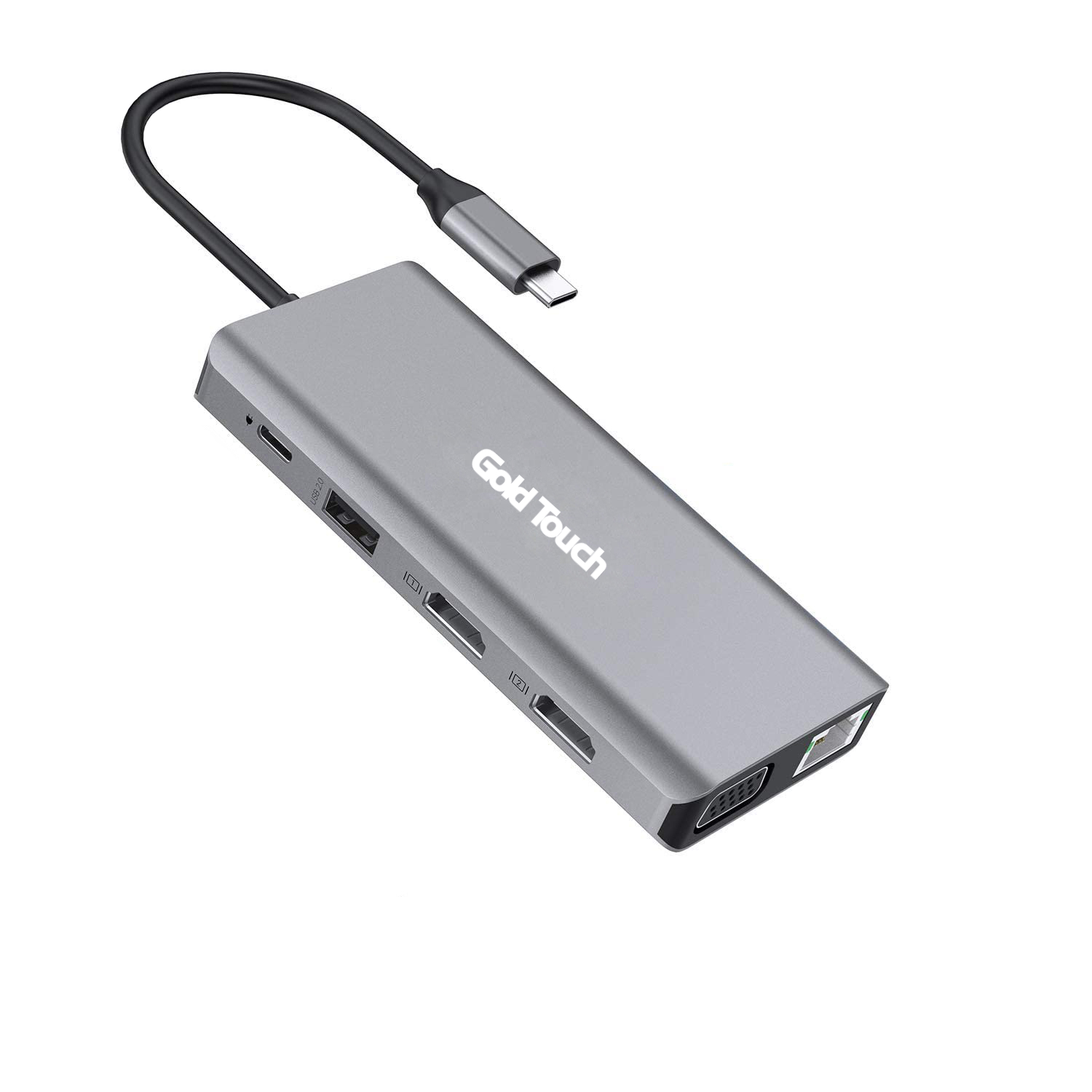

Type: USB Type C Premium Docking Station
Color: Silver
Overview:
Triple Display 4K – Support Multi-stream Transport
For Windows and MacOS includes Apple M1
Specifications:
- Triple Display 4K
- Support Multi-stream Transport for Windows and MacOS includes Apple M1
- Plug & play – no need driver

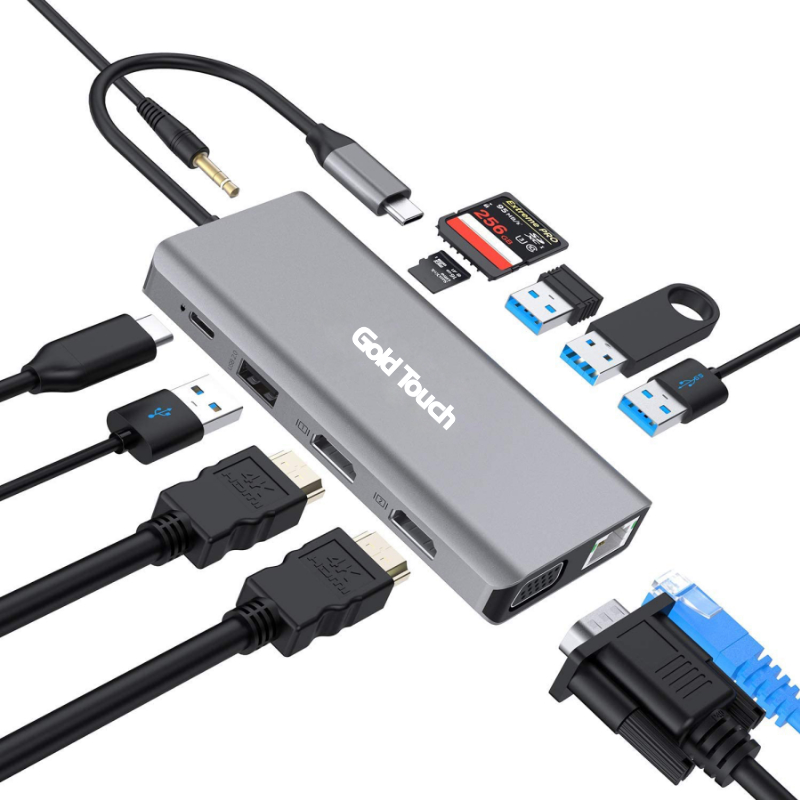

| USB 3.1 | Connector | USB 3.1 Gen2 Type C |
| HDMI | 1 Port | Support up to 4k UHD 3840*2160P@30Hz Resolutions |
| HDMI | 1 Port | 2560*1440@50Hz |
| VGA
HDMI + VGA HDMI + HDMI + VGA | 1 Port | 1920*1080@60Hz 1920*1080@60Hz 1920*1080@60Hz |
| USB Type C Female PD 3.0 | 1 charging Port | Only for Type C laptop / smartphone charging PD 100W |
| USB 3.0 | 3 Port | USB3.0 Type A support up to 5Gbps |
| USB 2.0 | 1 Port | USB2.0 Type A support up to 480Mbps |
| 3.5mm Audio and Mic | 1 Port | stereo combo jack (microphone input/audio output) |
| SD and TF Card | 1 slot | Support memory card supports up to 512GB (SD / TF cannot be used simultaneously) |
| LAN | 1 Port | Ethernet port support 10/100/1000 Mbps |
Video Matrix:
| USB-C DP Alt Mode (DP1.2 HBR2) MST | ||||
| Port | HDMI 1 | HDMI 2 | VGA | Remark |
| 1 | 2560×1440/50Hz | / | / | Single video output |
| 2 | / | 3840×2160/30Hz | / | |
| 3 | / | / | 1920×1080/60Hz | |
| 4 | 2560×1440/50Hz | 3840×2160/30Hz | / | Dual video output |
| 5 | 1920×1080/60Hz | / | 1920×1080/60Hz | |
| 6 | / | 3840×2160/30Hz | 1920×1080/60Hz | |
| 7 | 1920×1080/60Hz | 3840×2160/30Hz | 1920×1080/60Hz | Triple Video Output |
| USB3.0-A (DL3900 for HDMI 1 + VGA) | ||||
| Port | HDMI 1 | HDMI 2 | VGA | Remark |
| 1 | 2560×1440/50Hz | / | / | Single video output |
| 2 | / | / | 1920×1080/60Hz | |
| 3 | 1920×1080/60Hz | / | 1920×1080/60Hz | Dual video output (MST) |
Package Contents:
- USB-C Docking Station
- Travel pouch
- User’s Manual
System Requirements:
- Windows 10
- Mac OS includes Apple M1
