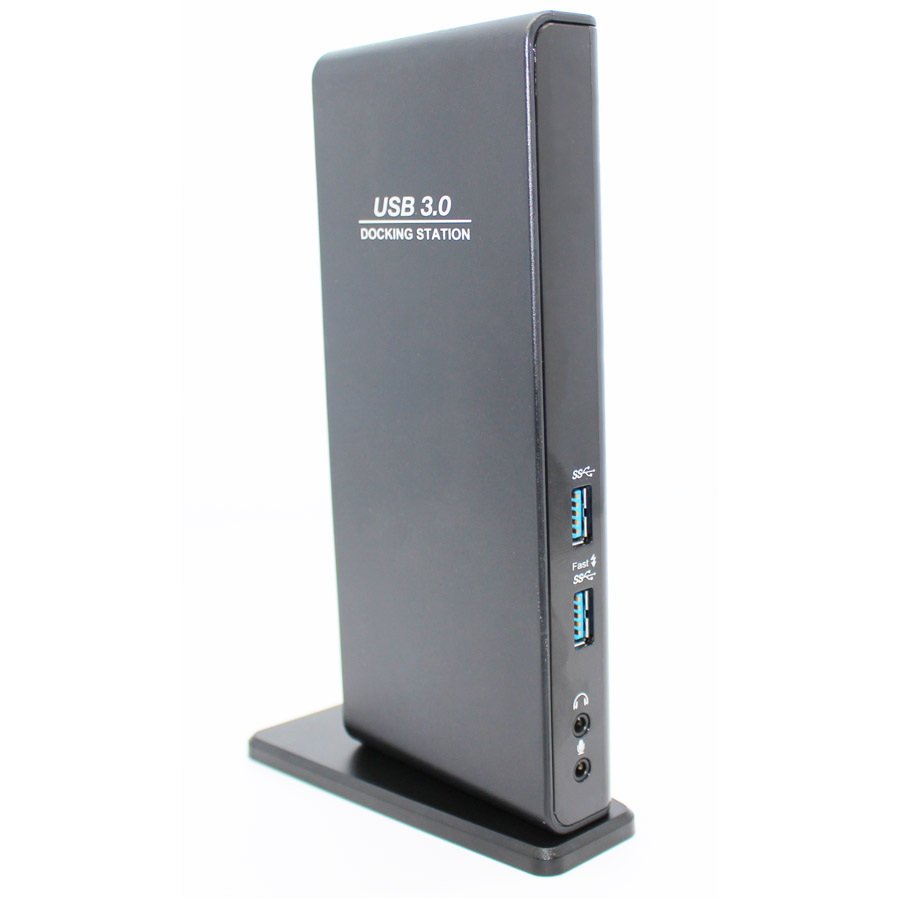

USB3.0 Docking Station

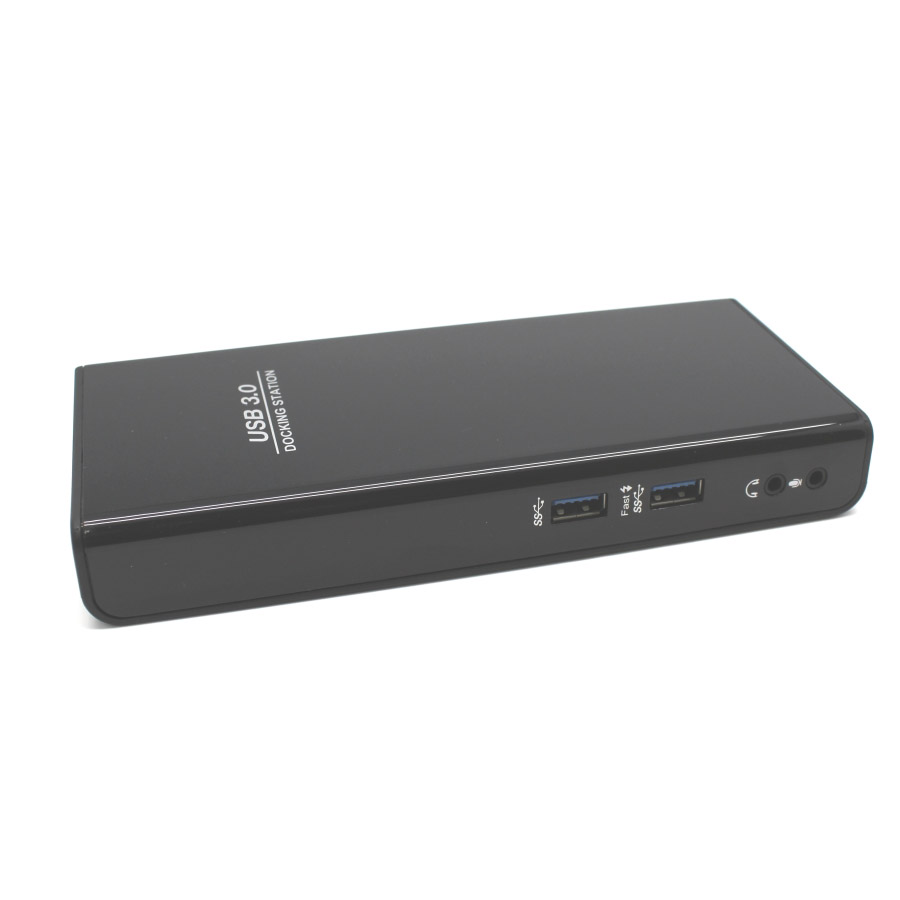

USB 3.0 Docking Station

Description

Description

Type: Gold Touch USB3.0 Docking Station (Option Type C USB3.1)
Color: Black
Overview:

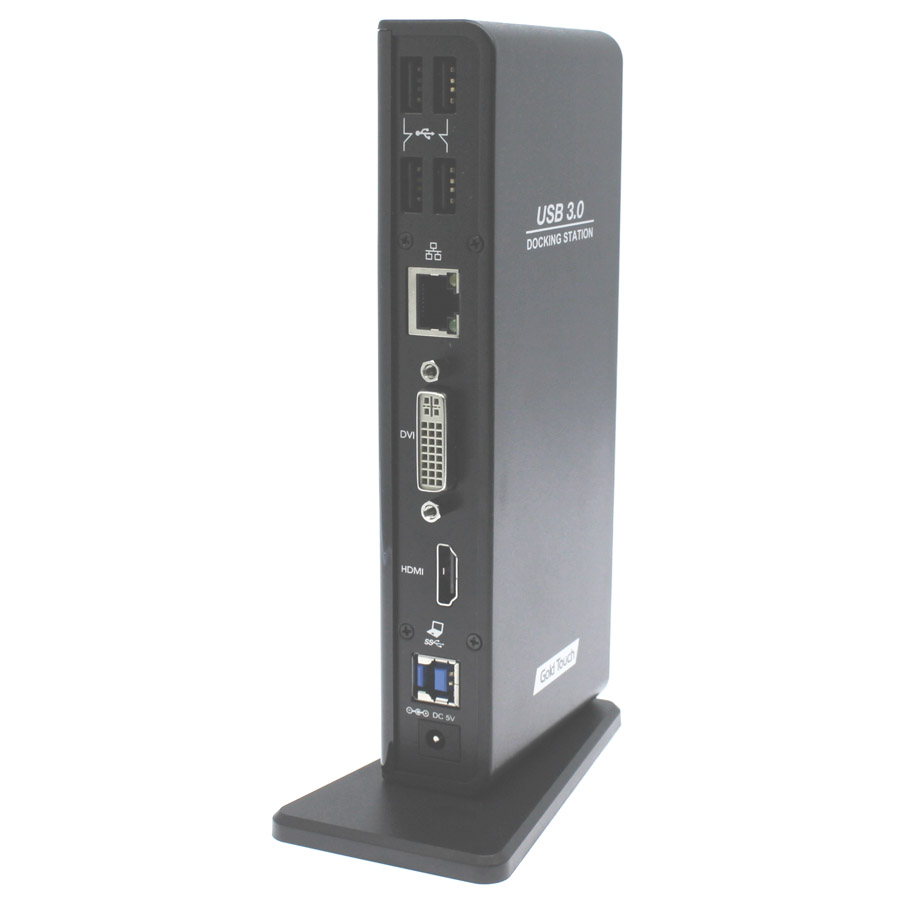

Video output: HDMI 30pin Female Connector (Dual Display model), DVI HDDE 30pin Female Connector

Host upstream link: USB B Type Female Connector

HUB downstream link: USB A Type Female Connector

  • Compatible with USB 3.0/2.0 specification
  • Resolution up to 2048 x 1152 (Supported colors: 16 Bits and 32 Bits)
  • Support audio 2.1 channel (Audio Port: 3.5mm stereo mini-jack 2.1ch)
  • Support Gigabit Ethernet (10/100/1000), RJ45 Connector
  • Support HDMI
  • Support BC1.2 charging (Front x1)
  • DC power jack (Self-powered)
  • Power Adapter: Input: AC 100-240V, Output: DC 5V/4A
  • Power Consumption: Operating Power: 14.43W, Suspend Mode Power: 1.95W
Physical Properties:
  • Housing: ABS (Plastic)
  • Weight: 365g approx.
Working Environment:
  • Operation Temperature: 0~40 degree
  • Storage Temperature: -20~70 degree
  • Package Contents:
  • Docking Station x1
  • USB 3.0 Cable x1
  • Power Adapter x1
  • CD (Driver and User’s Manual) x1
  • Quick Installation Guide x1

Download Windows Driver : 8.2 M1 18 Apr 2017

Download MAC OS Driver:  3 03 Feb 2017, Sierra 10.12, El Capitan 10.11, Yosemite 10.1

Android Driver from Google Play

Shipping & Delivery

Shipping & Delivery

Lead Time: 25 – 30 working Days

Terms: Ex. Works / FOB depend customer requirement

We are able to provide samples

For any request or requirement, feel free to contact us and ask
