IR Infrared Remote Control Repeater Emitter Extender

Remote Control IR Repeater

P/N: E-RC-IR Categories: ,
Description

Description

Type: IR Infrared Remote Control Repeater Emitter Extender

Cable Length: IR Receiver 1.5m, IR Emitter 3m

Color: Black

Overview:

Remote Control Infrared Repeater is a product which amplifies the IR signal of AV equipment. By connecting to it
you can keep your AV equipment behind closed doors, or mount them hidden away out of sight in a cabinet,
cupboard or another room and still operate them with your remote control.

High Sensitivity.Real time transmission without any delay with its high sensitivity sensor.

CFL Friendly. This unit can be installed in an area with compact fluorescent lighting and work in most
lighting environments.

Remote Indication light on IR Receiver. Green being power connected while flashing red indicates the
signal is being sent.Wide Frequency Range. Compatible with almost all the AV equipment in the market.

  • Receiving Frequency Range: 34 KHZ to 60KHZ
  • Emitting Frequency Range: 38 KHZ & 56KHZ
  • Receiving Distance: 8m
  • Emitting Distance: 100-200mm
  • Power Consumption: 5VDC, 70mA max
  • Dimension: IR Receiver 31(L)×17(W)×13(H)mm
  • IR Emitter 13(L)×8(W)×5.5(H)mm
  • IR Repeater Box 90(L)×55(W)×26(H)mm
  • Cable Length: IR Receiver 1.5m, IR Emitter 3m
  • Plug and Play – Full hardware design. No software to install
  • Small Size and Solid Design
  • Low Power Consumption. 5V DC, 70mA max.

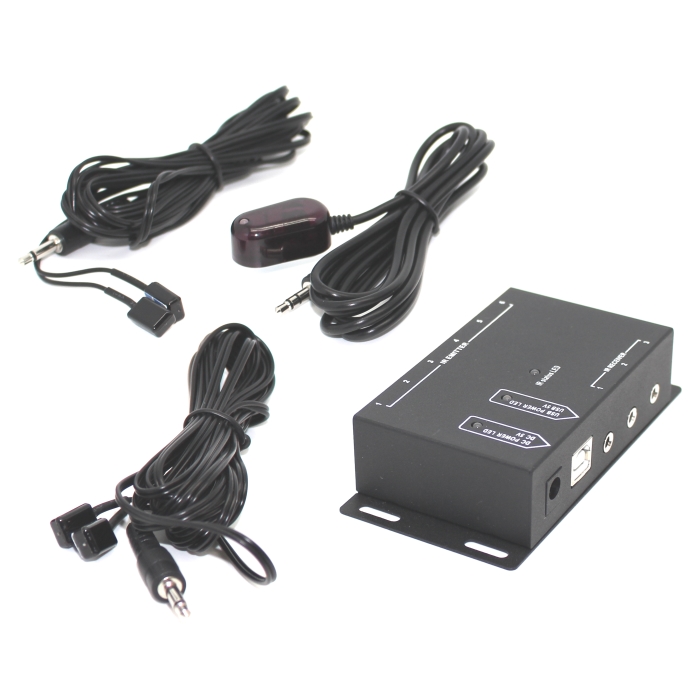

Package:
  • 1x IR Repeater Box
  • 3x IR Emitter Cable(with 2 Emitters on cable)
  • 1x IR Receiver Cable(with 1 Receiver on cable)
  • 1x DC 5V Power Adapter
  • 1x User Manual
Shipping & Delivery

Shipping & Delivery

Lead Time: 25 – 30 working Days

Terms: Ex. Works / FOB depend customer requirement

We are able to provide samples

For any request or requirement, feel free to contact us and ask
