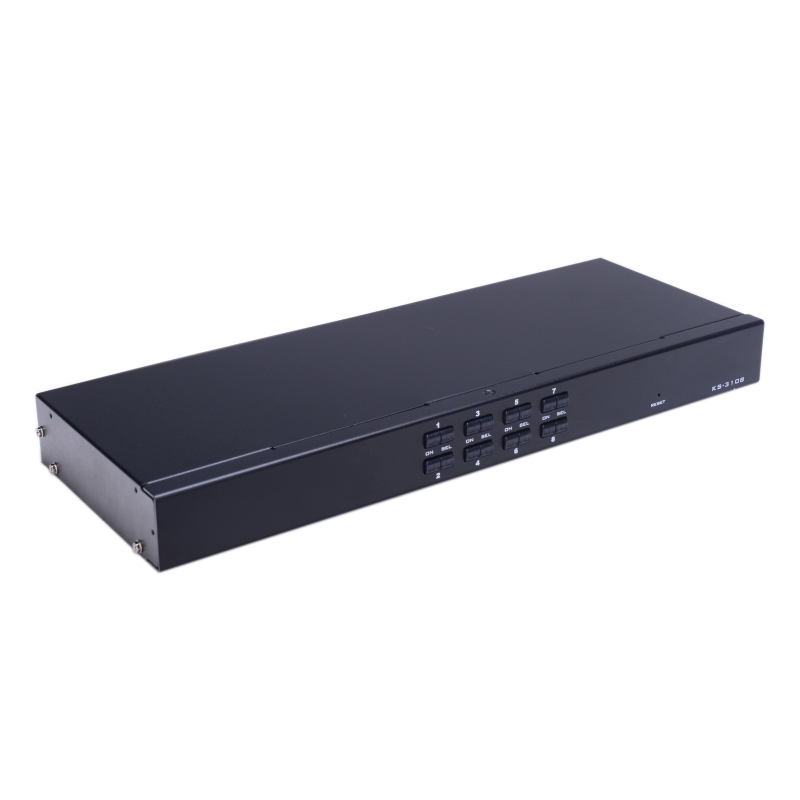

8Ports KVM Switch with LAN Connection

Description

Type: 8 Ports KVM Switch with LAN Connection

Color: Black

Overview:

The KVM-LAN-8, PS/2 / USB CAT5 UTP KVM (Keyboard, Video, Mouse) Switches are control units
that allow access and control of up to 8 computers from a single PS/2 / USB keyboard, PS/2 / USB
mouse, and monitor console.

Control 8 computers with local
Both the console and the computer are compatible with PS/2 / USB mouse and keyboard
Computer selection via front panel switches and OSD
LEDs display for easy status monitoring
Auto Scan Mode for monitoring all computers
Superior video quality
Easy installation – no software required
Hot pluggable – add or remove computers for maintenance without powering down the switch
Support Windows, Solaris etc.

Specification:

Type			8 Port
Model			KVM-LAN-8
Computer Connection	Direct Connects		8
	Maximum Connects		128
CPU Port Selection			OSD Menu, Front panel buttons, Hot Key, IP Remote Control (Optional)
Connectors	Console Connector	Monitor	17” LED
		Keyboard	1 x USB Type A Female
		Mouse	1 x USB Type A Female
		Expansion Interface	1 x USB Type A Female (Front expansion Keyboard, Mouse Interface)

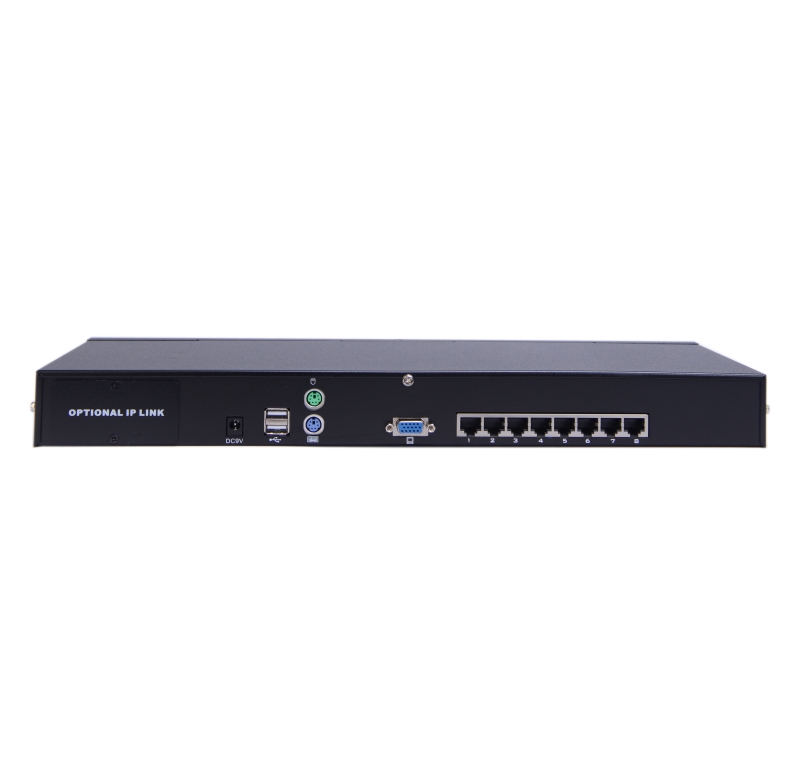

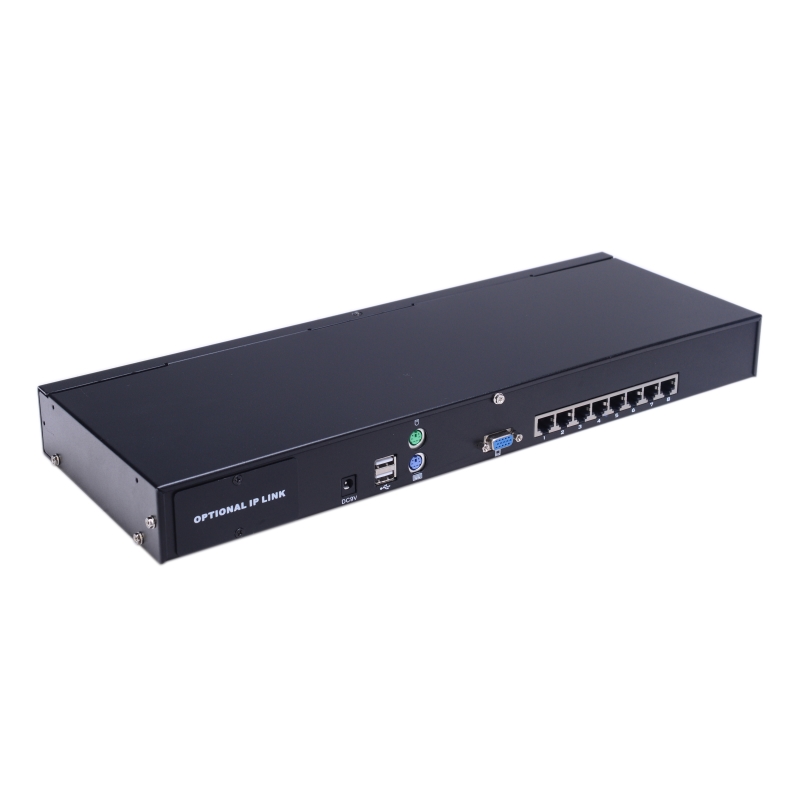

	PC Connector	Monitor, Keyboard/Mouse Switch Module	8 x VGA DB15 Female Blue, 8 x USB OR 8 x PS/2
		Switch Module Port	8 x RJ45
	Power		1 x DC Jack
	Network Port		1 x RJ45
Key Switch	Connection Port Selection		KVM Operation Panel Digital keys
	KVM Reset		1 x semi-embedded keys
	IP Module Reset		1 x semi-embedded key
	IP Module Default		1 x semi-embedded key
LED’s	Selected		8 x Green
	Online		8 x Red
	IP Network		1 x Green, 1 x Orange
Analog Mode	Keyboard/Mouse		USB, PS/2
Resolution (Max)			1920 x 1200 @ 60HZ Local & Remote
Scan time interval			3, 5, 10, 15, 20, 30, 40, 60s (3s by default)
Operating Environment	Operating temperature		-10-50˚C
	Storage temperature		-20-60˚C
	Humidity		0-80%RH, No Condensation
Physical Properties	Housing		Metal
	Size		432 x 155 x 44 mm
	Weight		1.82KG
