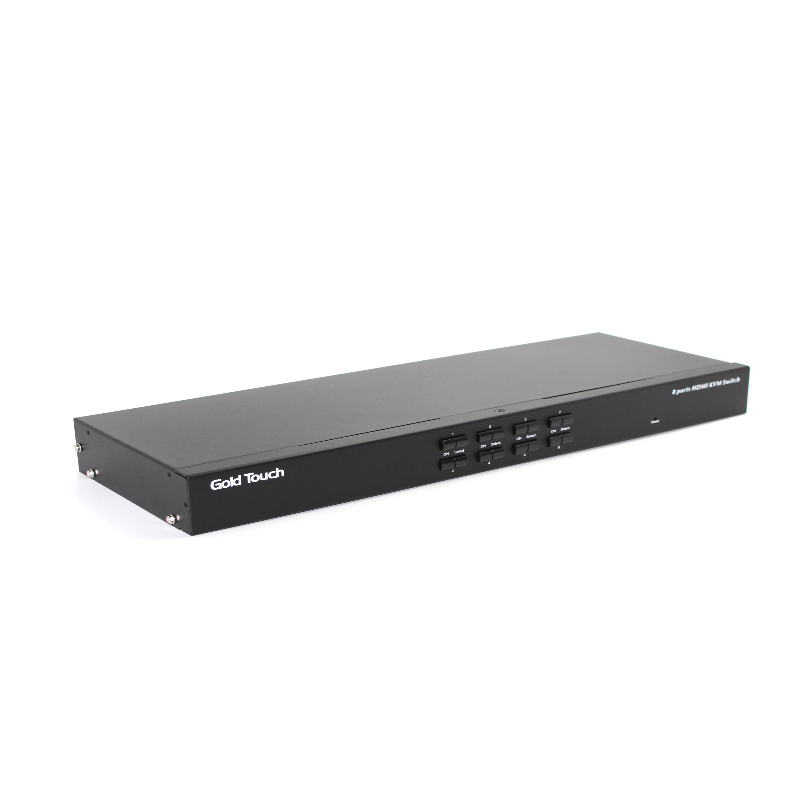

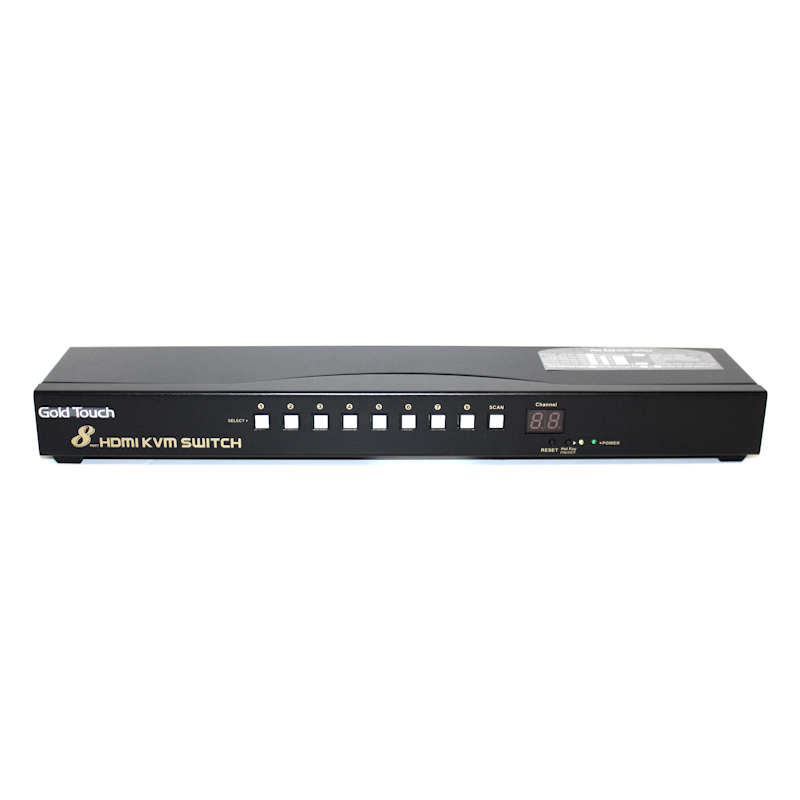

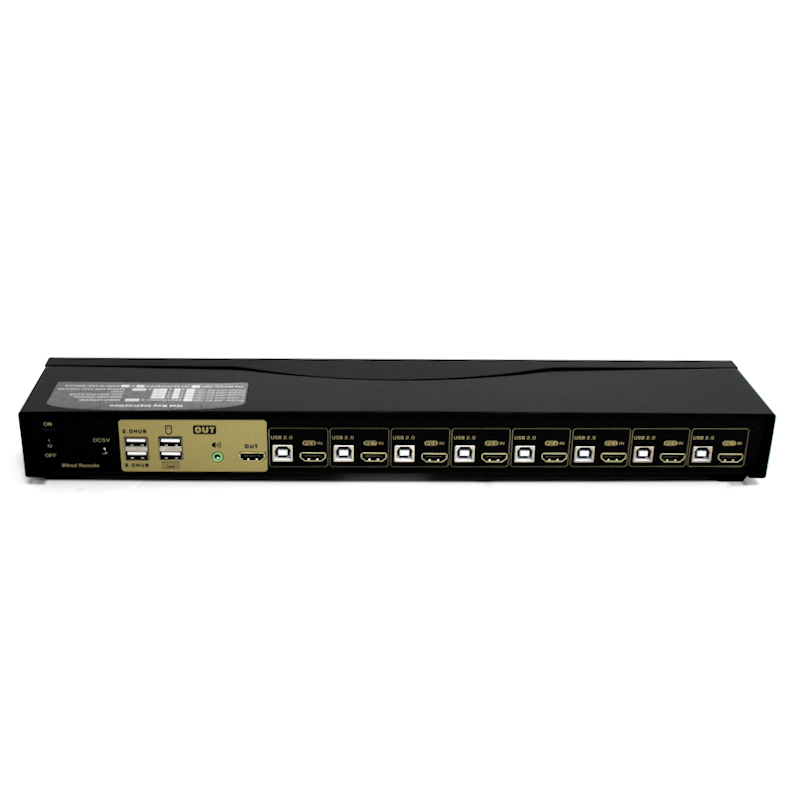

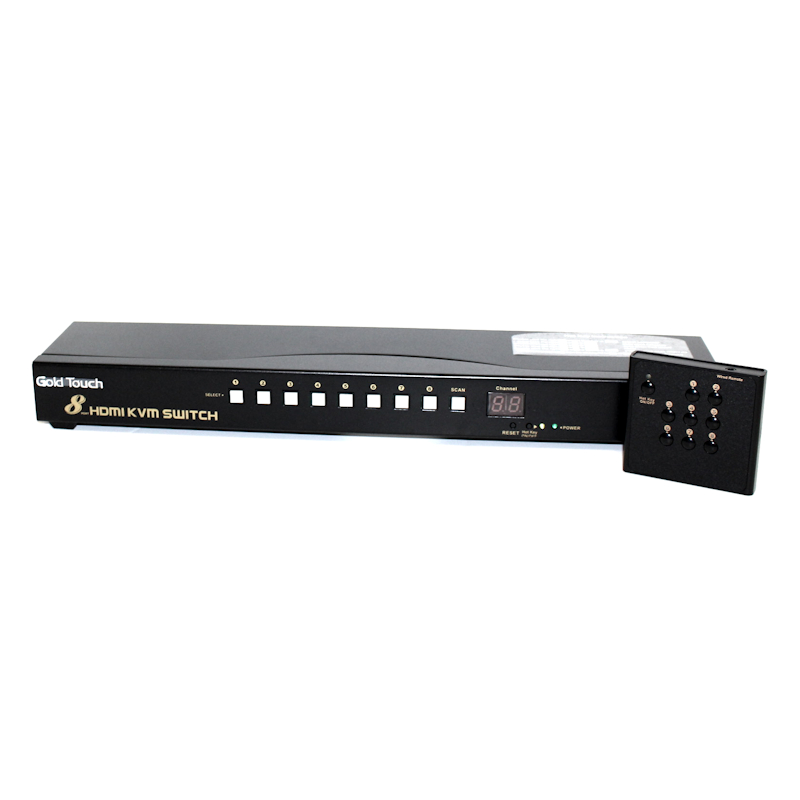

8Port HDMI KVM Switch – 4K

Color: Black

P/N: KVM-HDMI-8-4K Categories: ,
Description

Description

Type: 4K KVM HDMI  8 Ports Awitch without Cables
Color: Black
Overview:
  • 8Port HDMI USB2.0 KVM Switch with audio, Support 4K Resolution
  • SingleUSB console control 8 HDMI interface computer and two additional USB device;
  • 2ports USB hub 2.0 built in; fully compliant USB 2.0 specification;
  • HDMI video resolution in Max: 4K@30fp4K @30HZ (3840*2610@30HZ);
  • HDMI digital monitor support -fully compliant with HDMI; also HDCP compliant
  • Dolby True HD and DTS HD Master Audio support
  • Multiplatform support;
  • USB extension port in front of device, which isconvenience for keyboard, mouse, flash and printer peripheral devices connection;
  • Provide multi-types of hotkeys setting and choosingfunction, convenience for users to set hotkey freely;
  • Auto-scan functions;
Specification:

Function

KVM-HDMI-8-4K

Computer Connection

8

Port Selection

OSD Menu, Front panel switches, Hot Key

Connector

Console Connector

Monitor

1 x HDMA Type A Female Black

Keyboard

1 x USB Type A Female

Mouse

1 x USB Type A Female

Audio

1 x Speaker -3.5mm Socket Green

1 x MIC-3.5mm Socket Pink

PC
Connector

Monitor

8 x HDMI Type A Female Black

Mouse/Keyboard

8 x USB Type B Female White

Audio

4 x 3.5mm Audio integration Socket Black

Power Supply

1 x DC Jack (Extermal PSU is opptional)

Connection Port Selection

KVM Switch Reset

4*KVM Operation Panel Function Keys

LED Instruction

Online

4 x Red

Selected

4 x Green

Simulation Method

Keyboard/Mouse

USB

Max Resolution Video

4K @30HZ (3840*2610 @30HZ)

Switch Hotkeys

CTL+CTL

Operating Environment

Operating temperature

0-50℃

Storage temperature

-20-60℃

Humidity

0~80%RH No Condensation

Physical Properties

HousingMetal

Dimensions (L x W x H )

202*110*44mm

Weight(kgs)

0.85



Shipping & Delivery

Shipping & Delivery

Lead Time: 25 – 30 working Days

Terms: Ex. Works / FOB depend customer requirement

We are able to provide samples

For any request or requirement, feel free to contact us and ask
