Description
Type: 4K KVM HDMI 2Ports Awitch (without Cables)
Color: Black
Overview:

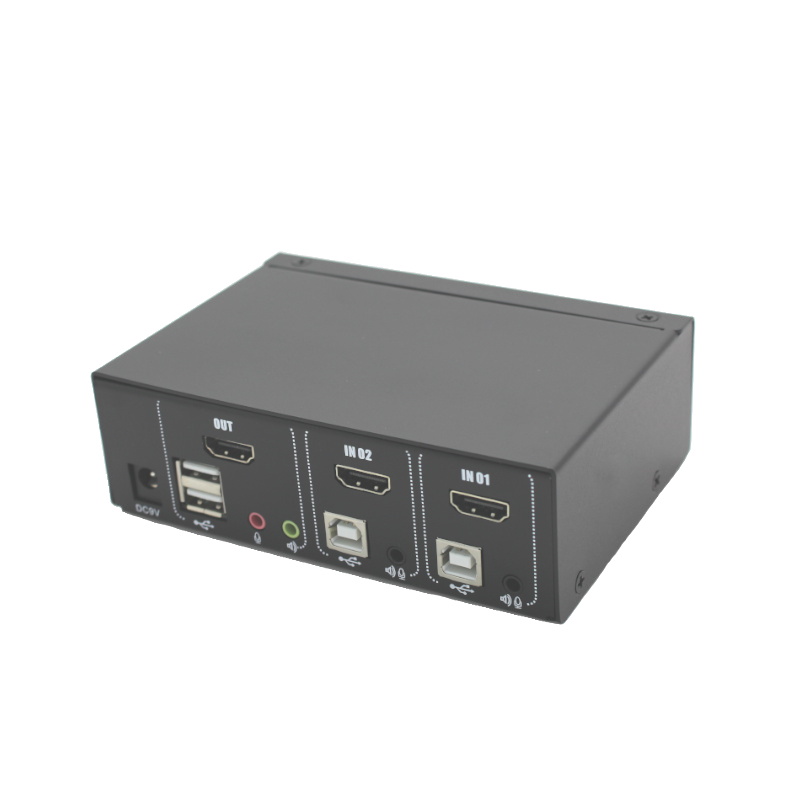

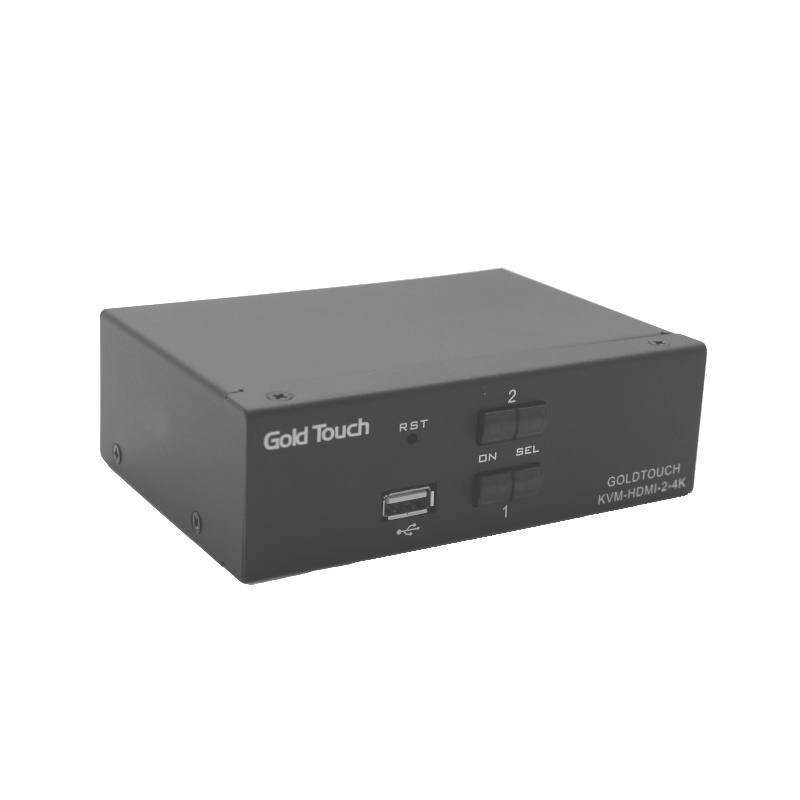

2 Port HDMI USB2.0 KVM Switch with audio – Support 4K Resolution
- Single USB console control 2 HDMI interface computer and two additional USB device
- 2 ports USB hub 2.0 built in – fully compliant USB 2.0 specification
- HDMI video resolution in Max: 4K@30fp4K @30HZ (3840*2610@30HZ)
- HDMI digital monitor support -fully compliant with HDMI; also HDCP compliant
- Dolby True HD and DTS HD Master Audio support
- Multiplatform support
- USB extension port in front of device, which isconvenience for keyboard, mouse, flash and
printer peripheral devices connection - Provide multi-types of hotkeys setting and choosingfunction, convenience for users to set
hotkey freely - Auto-scan functions
Specification:
| Function | KVM-HDMI-2-4K | |||
| Computer Connection | 2 | |||
| Port Selection | OSD Menu, Front panel switches, Hot Key | |||
| Connector | Console Connector | Monitor | 1 x HDMA Type A Female Black | |
| Keyboard | 1 x USB Type A Female | |||
| Mouse | 1 x USB Type A Female | |||
| Audio | 1 x Speaker -3.5mm Socket Green 1 x MIC-3.5mm Socket Pink | |||
| PC Connector | Monitor | 2 x HDMI Type A Female black | ||
| Mouse/Keyboard | 2 x USB Type B Female white | |||
| Audio | 2 x 3.5mm Audio integration Socket Black | |||
| Power Supply | 1 x DC Jack (External PSU is optional) | |||
| Connection Port Selection | KVM Switch Reset | 2*KVM Operation Panel Function Keys | ||
| LED Instruction | Online | 2 x Red | ||
| Selected | 2 x Green | |||
| Simulation Method | Keyboard/Mouse | USB | ||
| Max Resolution Video | 4K @30HZ (3840*2610 @30HZ) | |||
| Switch Hotkeys | CTL+CTL | |||
| Operating Environment | Operating temperature | 0-50℃ | ||
| Storage temperature | -20-60℃ | |||
| Humidity | 0~80%RH No Condensation | |||
| Physical Properties | Housing | metal | ||
| Dimensions (L x W x H) | 132*92*44mm | |||
| Weight（kg） | 0.6 | |||
