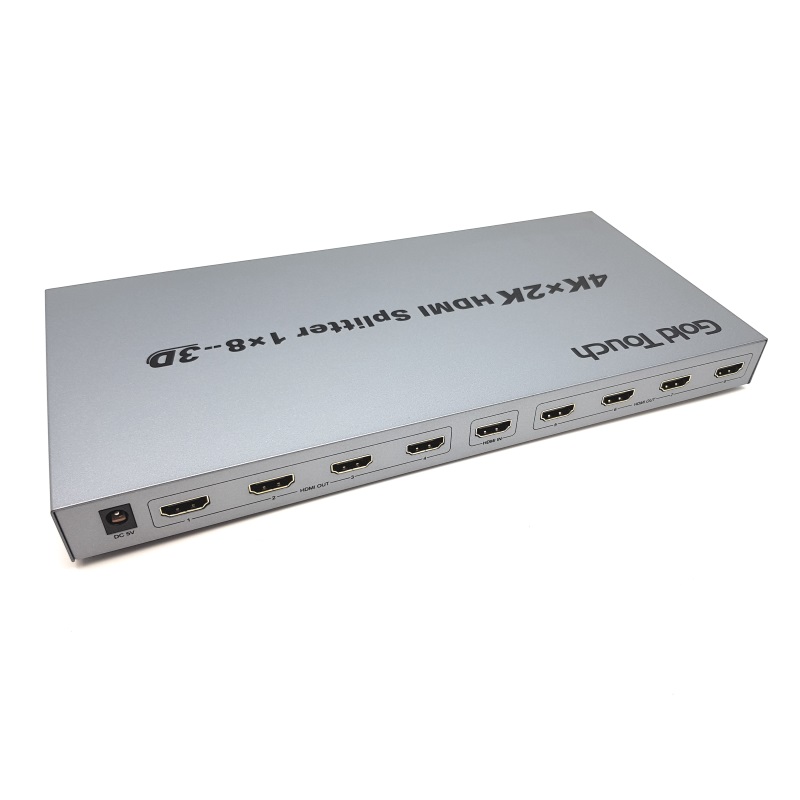

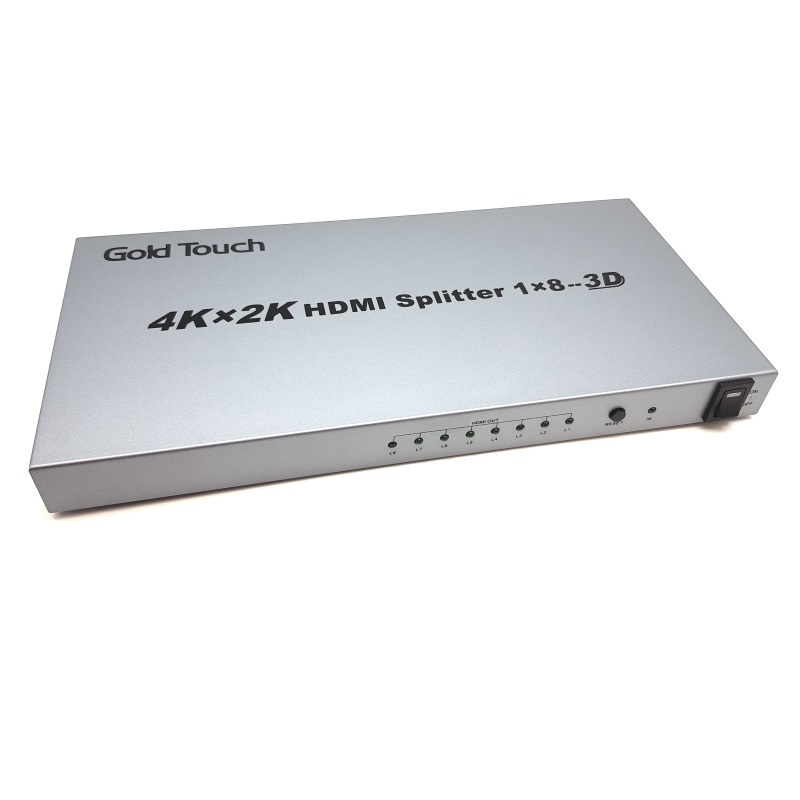

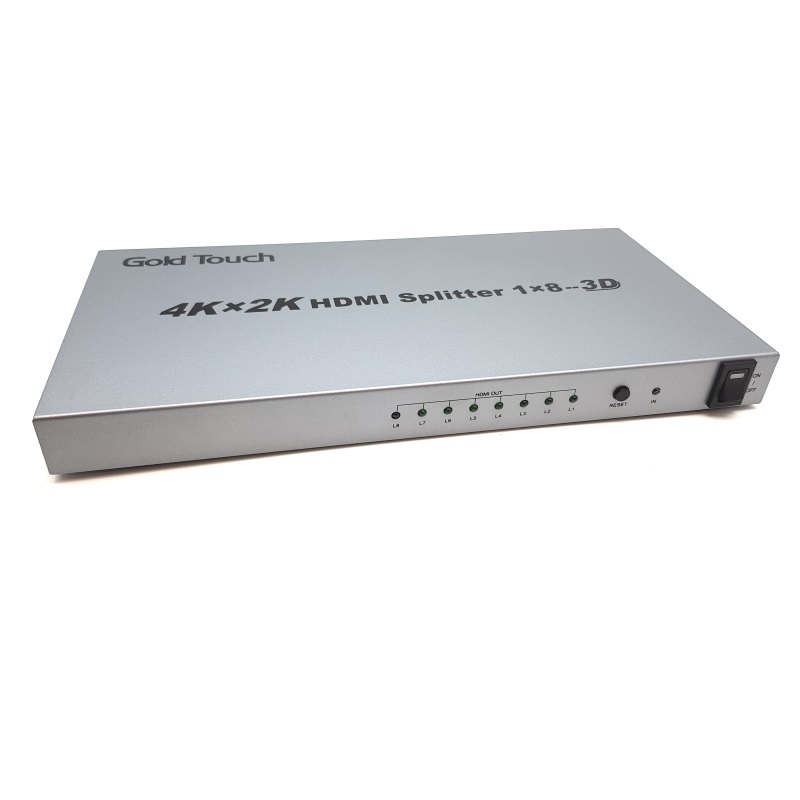

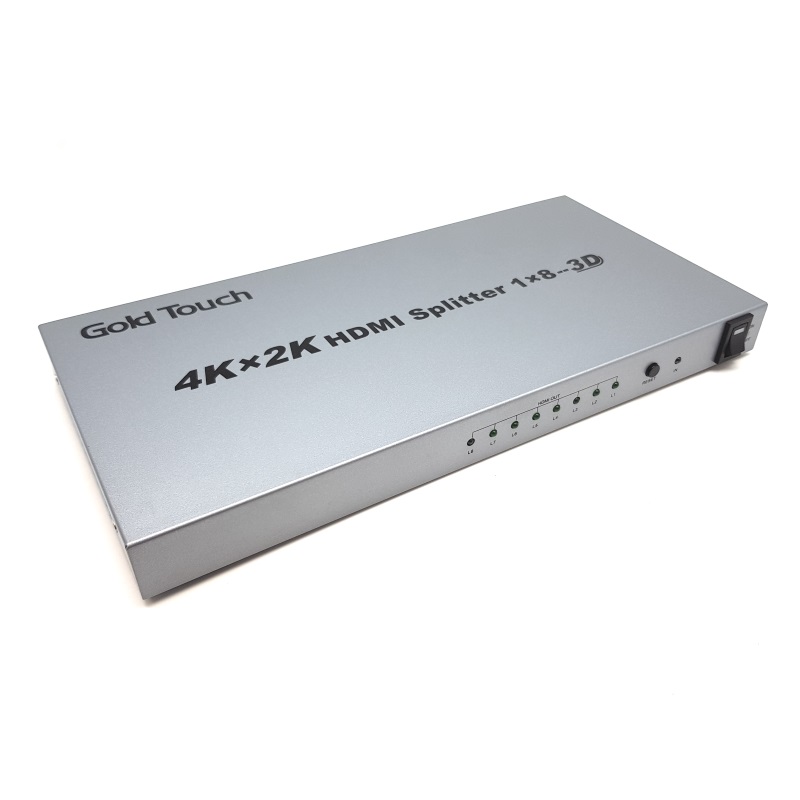

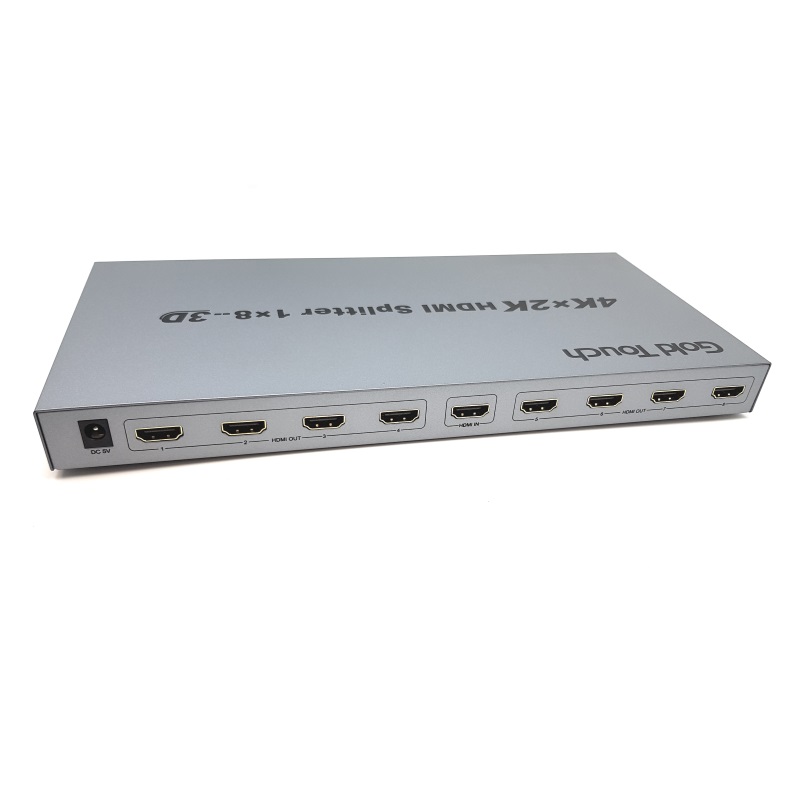

4K HDMI Splitter – 8Ports

Color: Silver

SKU: HDMI-4K-S8 Categories: ,
Description

Description

Type: Gold Touch 4K*2K HDMI 8 Ports Splitter
Color: Silver
Overview:

HDMI-4K-S4 Item belongs to the HDMI signal distribution product. This is an ultra high definition HDMI
splitter supporting 3D and 4K*2K resolution. The ultra HD signal can be easily allocated to multiple monitors
that support Ultra HD signals.

The front and rear end of this product can connect to splitter, matrix and extender etc. And the picture effect
have no degradation and with good stability. When playing HD video without pause, delay and trailing as well
as perfectly supports 3D to make you enjoy three-dimensional picture.

It is widely used for video advertising, monitoring, information release, security system, multimedia teaching
system, bank, metro, computer room and long distance transmission management etc..

  • HDMI 1.4a input signal split to eight HDMI 1.4a sink devices
  • Support Full HD, Full 3D
  • Support 4K*2K
  • Support CEC
  • Support deep color 24bit,30bit, 36bit,48bit
  • Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
  • Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD/HD (HBR)
  • Support signal retiming
  • Support input up to 15metres AWG26 HDMI standard cable length,
  • output up to 25metres AWG26 cable length
  • No loss of quality
  • Installs in minutes
HDMI versionHDMI 1.4a
HDMI resolution24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format24bit/deep color 30bit,36bit,48bit
Support audio formatDTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)
Max bandwidth340MHz
Max baud rate10.2Gbps
Input/Output TMDS signal0.5~1.5Volts p-p(TTL)
Input/Output DDC signal5Volts p-p (TTL)
Input cable distance15m AWG26 HDMI standard cable
Output cable distance≤25m AWG26 HDMI standard cable
Max working current2A
Power adapter format..Input:AC (50HZ, 60HZ) :100V-240V; Output: DC12V/3A
Operating Temperature range(-15 to +55°C)
Operating Humidity range5 to 90%RH (No Condensation)
Shipping & Delivery

Shipping & Delivery

Lead Time: 25 – 30 working Days

Terms: Ex. Works / FOB depend customer requirement

We are able to provide samples

For any request or requirement, feel free to contact us and ask
